Thermal Drones in Australia: How to Choose a Thermal Imaging Drone

What to look for in a thermal imaging camera for a drone, and how the DJI and FLIR options compare.

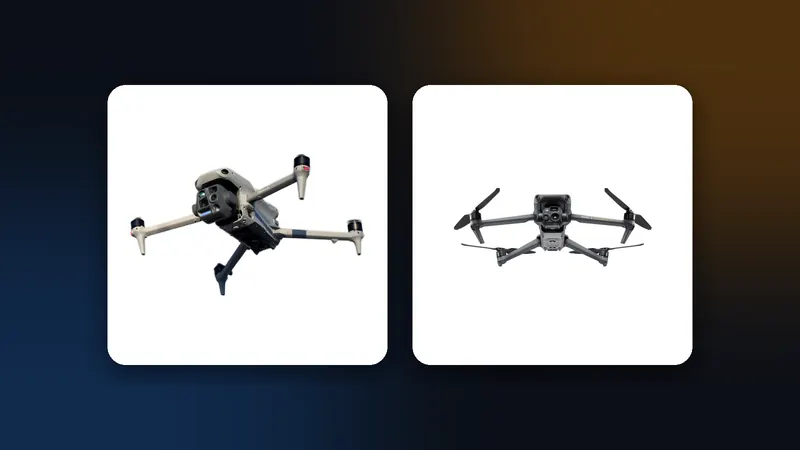

DJI Matrice 4 Thermal and DJI Mavic 3 Thermal enterprise drones

October 2026 · 8 min read · Enterprise Systems Specialist

A thermal drone carries a thermal imaging camera that shows heat instead of visible light. That makes it useful for roof and solar inspections, electrical and mechanical checks, search and rescue, firefighting support and wildlife surveys. This guide explains what to look for in a thermal imaging camera for a drone and how the options we supply compare. A drone with thermal camera capability is a serious tool, so it pays to match the specifications to the job.

Which thermal drone should you buy in Australia?

For most thermal drones Australia buyers compare, the DJI Matrice 4 Thermal is the best all-round choice for inspection and public-safety work. The DJI Mavic 3 Thermal is the most portable, and the DJI Matrice 30T is the most rugged at IP55. If you already own a compatible aircraft, a Zenmuse H30T payload may be the cheaper route.

How a thermal imaging camera works

A thermal camera measures infrared radiation and turns the differences into an image. Hotter objects appear brighter or in different colours, so you can spot a failing solar cell, a hot connection or a person in low light without relying on visible detail. Many enterprise thermal drones pair the thermal camera with a wide visual camera and a zoom camera, so you can see the heat and the context together.

What drone thermal imaging is used for

Roof and solar inspections: hot spots show failing cells and damaged panels from the air.
Electrical and mechanical checks: overheating connections, motors and bearings stand out before they fail.
Search and rescue: a person or animal shows up in low light or thick cover.
Firefighting support: see hot spots and fire edges through smoke.
Wildlife surveys: count and locate animals without disturbing them.

Not sure whether you need a thermal drone or just a thermal camera? Read our guide to thermal cameras vs thermal drones.

The specifications that matter

Thermal resolution. More pixels mean more detail at distance. Most enterprise thermal drones use a 640×512 sensor; high-end payloads reach 1280×1024.
Thermal sensitivity (NETD). A lower number, such as 50 mK or less, picks out smaller temperature differences.
Field of view and lens. A wider view covers more ground; a narrower one reaches further.
Radiometric measurement. Radiometric cameras report temperatures, which matters for inspection reports.
Visual and zoom cameras. You still need a good visual camera to identify what you are looking at.
Flight time and weather rating. Long flights and an ingress protection rating keep you working.

Thermal drones compared

Model	Thermal camera	Other cameras	Flight time	Weight
DJI Matrice 4 Thermal	640×512, 12 µm, uncooled VOx, 50 mK or less, 45° DFOV	48 MP wide, 48 MP medium tele, 48 MP tele, laser rangefinder	Up to 49 min	1,219 g
DJI Mavic 3 Thermal	640×512 uncooled VOx	48 MP wide, 12 MP tele with 56× hybrid zoom	Up to 45 min	920 g
DJI Matrice 30T	640×512, 12 µm, radiometric	12 MP wide, 48 MP zoom (5 to 16× optical)	Up to 41 min	About 3.77 kg with batteries
Zenmuse H30T payload	1280×1024 uncooled VOx, 30 fps, -20 to 1,600°C	48 MP wide, 40 MP zoom (34× optical), laser rangefinder 3 to 3,000 m	Depends on aircraft	920 g

DJI Matrice 4 Thermal: the compact all-rounder

The DJI Matrice 4 Thermal combines a 640×512 thermal camera with three 48 MP visual cameras and a laser rangefinder in a 1,219 g aircraft with up to 49 minutes of flight. For most inspection and public-safety teams it is the best balance of capability and portability. The DJI Matrice 4T Plus Combo and the Worry-Free Flagship Combo add batteries and care coverage.

DJI Mavic 3 Thermal: portable and lighter

The DJI Mavic 3 Thermal is the most portable thermal option. It folds small, weighs 920 g and offers up to 45 minutes of flight with a 640×512 thermal camera and a 56× hybrid zoom tele camera. See the Worry-Free Plus Combo for the full kit.

DJI Matrice 30T: weather-resistant and rugged

The DJI Matrice 30T is rated IP55, carries a radiometric 640×512 thermal camera with a 12 MP wide camera and a 48 MP zoom camera, and flies for up to 41 minutes. It suits teams that work in poor conditions and need a rugged platform.

Zenmuse H30T and FLIR payloads

If you already own a compatible aircraft, a thermal payload can be the cheaper route. The Zenmuse H30T has a 1280×1024 thermal sensor and a wide temperature range of -20°C to 1,600°C. The FLIR Vue TZ20 carries dual FLIR Boson 640×512 sensors with 95° wide and 18° narrow fields of view for compatible Matrice aircraft. Browse all thermal cameras and Zenmuse cameras.

Automate repeat inspections

For repeat missions, a drone dock launches, lands and charges the aircraft without an operator on site. See the DJI Dock 3 and the Dock 3 Thermal Package under DJI Dock.

CASA and getting a quote

Flying commercially may require CASA accreditation or a ReOC, depending on the aircraft weight and the work. Check the CASA website, and use our quote form to tell us your use case. We will confirm the right combo, payloads, batteries and training. Read our enterprise drones guide for the wider range.

Frequently asked questions

What is the best thermal drone in Australia?

It depends on the job. The DJI Matrice 4 Thermal is the best all-rounder for most inspection and public-safety work, the DJI Mavic 3 Thermal is the most portable, and the DJI Matrice 30T is the most rugged.

What is drone thermal imaging used for?

Common uses are roof and solar inspections, electrical and mechanical checks, search and rescue, firefighting support and wildlife surveys. A thermal camera shows heat, so problems and people stand out even in low light.

Do I need CASA approval to fly a thermal drone?

Flying commercially may require CASA accreditation or a ReOC, depending on the aircraft weight and the work. Check the CASA website, and use our quote form if you want help choosing a compliant setup.

What resolution should a thermal camera have?

Most enterprise thermal drones use 640×512, which is enough for most inspections. A 1280×1024 sensor, such as the Zenmuse H30T, gives more detail at distance.

Can I add a thermal camera to my own drone?

Only if your aircraft supports the payload. The Zenmuse H30T and FLIR Vue TZ20 are made for specific Matrice aircraft, so tell us your drone and we will confirm compatibility.
