Thermal Camera vs Thermal Drone: Choosing an Infrared Camera for Inspections

When a thermal imaging camera on a drone beats a handheld, and which infrared cameras and aircraft we supply.

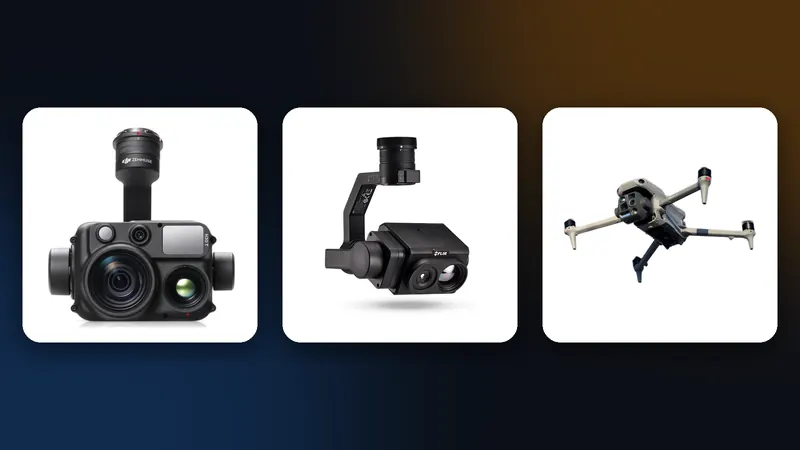

Zenmuse H30T thermal payload, FLIR Vue TZ20 and DJI Matrice 4 Thermal

October 2026 · 8 min read · Enterprise Systems Specialist

If you need to see heat, you have two broad choices: a thermal camera you carry, or a thermal imaging camera flown on a drone. Both are infrared cameras that turn temperature differences into an image, but they suit different jobs. This guide compares them, explains the specifications that matter and shows the thermal camera options we supply in Australia.

What a thermal camera actually measures

An infrared thermal camera does not see in the dark the way a night-vision camera does. It detects infrared radiation given off by objects and turns the differences into an image, so a hot connection, a failing solar cell or a person in a paddock stands out against a cooler background. A radiometric thermal camera goes further and records a temperature value for each pixel, which is what you need for inspection reports.

Ground camera or drone: how to decide

Factor	Ground thermal camera	Thermal drone
Coverage	One spot at a time	Whole roofs, solar farms, lines and paddocks in one flight
Access	Needs safe ground or ladder access	Reaches roofs, towers and rough terrain without climbing
Detail	Close, high-detail views	Depends on altitude, lens and sensor resolution
Cost	Lower for a single camera	Higher, but one aircraft covers many jobs
Typical use	Switchboards, plant rooms, building checks	Roof, solar, power line, search and rescue and agricultural work

Many teams end up with both: a ground camera for close checks and a drone for coverage. If your work is mostly large or hard-to-reach assets, start with the drone.

Fixed-site checks, such as switchboards and plant, are often done with an industrial thermal imaging camera on a tripod or in hand. A drone takes the same kind of measurement to places a person cannot easily reach.

Thermal imaging camera specifications that matter

Thermal resolution. More pixels mean more detail at distance. Most enterprise drones use 640×512; the top payloads reach 1280×1024.
Sensitivity (NETD). A lower figure, such as 50 mK or less, reveals smaller temperature differences.
Field of view. A wide lens covers more ground; a narrow lens reaches further.
Radiometric measurement. Needed if you report absolute temperatures.
Visual cameras. A good wide and zoom camera alongside the thermal sensor tells you what you are looking at.
Weather rating. An ingress protection (IP) rating shows how well the camera handles dust and water.

Thermal camera options we supply

Option	Thermal sensor	Notes
Zenmuse H30T	1280×1024 uncooled VOx, 30 fps, -20 to 1,600°C	48 MP wide, 40 MP zoom (34× optical), laser rangefinder 3 to 3,000 m, 920 g
FLIR Vue TZ20	Dual FLIR Boson 640×512, 12 µm LWIR	95° wide and 18° narrow fields of view, about 640 g, IP44
DJI Matrice 4 Thermal	640×512, 12 µm, uncooled VOx, 50 mK or less	Complete aircraft, up to 49 min flight, 1,219 g
DJI Mavic 3 Thermal	640×512 uncooled VOx	Portable aircraft, up to 45 min flight, 920 g
DJI Matrice 30T	640×512, 12 µm, radiometric	Rugged, IP55, up to 41 min flight

Payload or complete aircraft?

If you already fly a compatible enterprise aircraft, a thermal payload such as the Zenmuse H30T or the FLIR Vue TZ20 adds an infrared camera for far less than a new drone. If you are starting from scratch, a complete thermal aircraft is simpler: the DJI Matrice 4 Thermal and Mavic 3 Thermal arrive with the camera, software and batteries ready to fly. Browse every thermal camera and Zenmuse camera.

Common inspection jobs

Roof and building checks: find moisture, missing insulation and heat loss from the air.
Solar farms: locate hot cells, failed strings and connection faults quickly.
Power lines and substations: spot hot joints and failing components without shutting down.
Search and rescue: a person or animal stands out in low light.
Agriculture and wildlife: survey livestock and irrigation from above.

For a deeper look at the aircraft, read our thermal drones guide and the enterprise drones guide. A drone with a heat camera and a laser rangefinder can also measure the distance to the fault you have found.

Getting started in Australia

Commercial flying has CASA requirements, including accreditation or a ReOC depending on the aircraft weight and the work, so confirm yours before you fly for hire. Send a quote request with your inspection type and any aircraft you already own, and we will recommend the right thermal camera Australia-wide delivery included. Questions first? Contact us.

Frequently asked questions

Is a thermal camera the same as an infrared camera?

In practice, yes. A thermal imaging camera is an infrared camera that detects heat radiation and shows it as an image. Radiometric versions also report temperatures.

Can a thermal drone replace a handheld thermal camera?

For large or hard-to-reach assets, yes, because one flight covers far more ground. For close checks inside plant rooms, a handheld still has a place.

What thermal resolution do I need for inspections?

A 640×512 sensor suits most roof, solar and line inspections. Choose 1280×1024 if you need more detail at greater distance.
